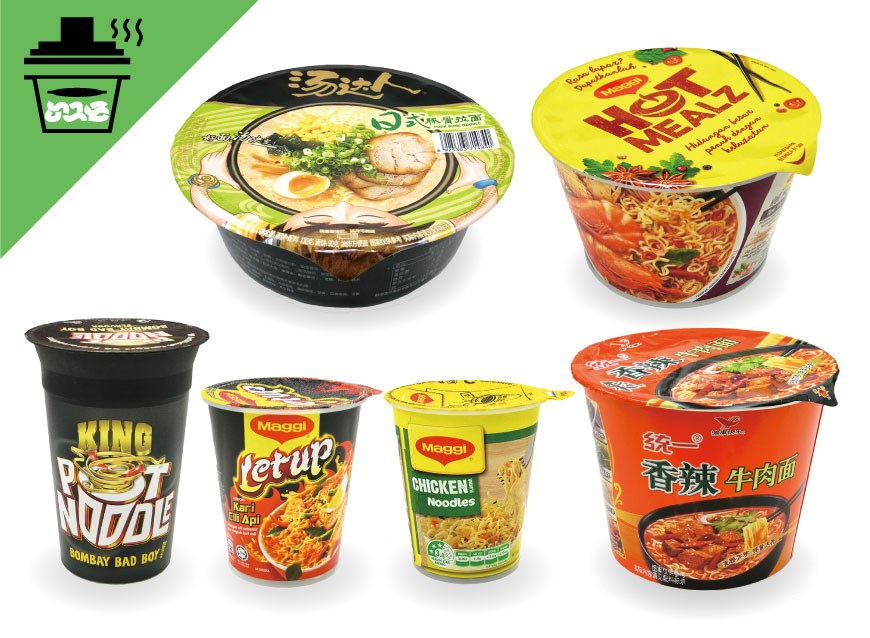

Cheng Cheng Kuang is one of the few suppliers for instant noodle production line equipment with capability to develop the cup & bowl sealing equipment and manufacture with a high standard of professionalism. The CCK Fully Automatic Cup or Bowl Sealing Machine is adaptable for sealing instant noodle containers of almost all verity of materials, such as paper, plastic, polystyrene, etc. Full Automatic PLC system with HMI interface offers easy operation and line status monitoring. With professional technology of mechanical cams and electric cams, and sensor system for lid supply, lid sealing and failure rejection, our sealing equipment satisfies the requirement for automation, low material waste, and easy maintenance from the customer.

The Sealing Machine used in the instant cup, pot, bowl or bucket noodles production line is a fully automatic high-speed packaging equipment independently developed by CHENG CHENG KUANG. Manufactured with professional high-standard specifications, it is suitable for instant noodle containers of almost all type of materials, such as paper, plastic, and polystyrene. The fully automated PLC system is equipped with a HMI screen panel, which is easy to operate and provides real-time monitoring functions. The mechanical design adopts professional cam technology, coupled with the sensor detection system for lid supply, lid sealing, and failure product rejection. Our sealing equipment can meet the needs of clients for the automation, low material waste, and easy maintenance of instant noodles packaging machines.

CUP/POT/BOWL NOODLE SEALING PROCESS LAYOUT
Fully Automatic Cup (Pot / Bowl / Bucket) Ramen Noodle Sealing Packing Machine - Flow Chart

FEATURES

● Capacity: Up to 300 packs per minute, product weight 50 ~ 90g. (* The actual capacity varies depends on the product weight requirement.)

● Easy Operation: Automatic control system with PLC and HMI screen panels offers immediate access to the production status, parameter setting, failure diagnosis, trouble shooting and remote monitoring.

● Safe: Safety devices with interlock system, and safety guards to ensure the safety for operation.

● Hygiene: All area that has direct contact with food product is made of stainless steel or food grade materials. Structure design with reduced dead corners, and with cleaning access such as cleaning doors or detachable doors.

● High Performance: Multiple mechanical protections to avoids damage caused by breakdowns. Design with mechanical cams and electric cams offers easy maintenance and less breakdown. Control system without cylinder to prevent form breakdowns due to insufficient air pressure.

● Sensor system: for cup or bowl supply, lid supply, lid sealing to reduce material waste.

● With failure product rejecting system: The products with missing lid, lid-sealing failure and/or missing seasoning sachet are rejected automatically.

● Options: Customization is available for adding metal detector to reject metal contaminated product.

● Sustainable: We select reliable parts and materials of good quality, and strive for accuracy and precision during manufacturing and machine assembly. Trials and tests are carried out before dispatching to ensure the equipment can last for many years.

● After-Sale Service: For each production line equipment, we offer guidance on installation, line commissioning, and operation training, with provision of operation manual and relative documentation.

CUP/POT/BOWL NOODLE SEALING PROCESS FLOW CHART

PROCESS	DESCRIPTION
	Operator fills up the Cup Supply Chute with empty cups or bowls → Automatic Cup Supply: “No noodle no cup”.
	Cup-on-Block System：Cups are hold by vacuum suction at the bottom → Cups cover the noodles → The whole unit is turned over → release the cups into the Pallet Conveyor.
	Adding seasoning sachets, powder and/or forks.
	Automatic Lid Supply & Placement: “No noodle no lid”.
	Lid Sealing: Lids are seal with heat sealers.
	Lid Testing: Products with lid-sealing failure are rejected automatically.
	Product Discharge: The final products are pushed up in the aluminum pallets and discharged from the Pallet Conveyor → top chain conveyor → shrink wrapping station (or boxing station)
*The actual process parameters, relevant data and information, such as noodle weight, noodle size, cup material and cup size, etc. need to be provided by the client and act as the basis for the sealing machine planning.
